Cone Drive
Cone Drive is a world leader in precision motion control technology. Cone Drive's Series B gearboxes and gear reducers provide an economical, flexible, and compact solution to fulfill the low-to-medium power range requirements. With capabilities up to 20HP and output torque up to of 7,500 lb in. in a single stage, Series B can provide design flexibility with lasting performance.
CONFIGURATION
FEATURES
INPUT BORE SIZE
INPUT TYPE
MANUFACTURER
OUTPUT BORE SIZE
OUTPUT TYPE
RATIO
SIZE
$665.37 EACHNewitem b021115.waqua
RIGHT ANGLE WORM GEARBOX
1.33IN CENTER DISTANCE
15:1 RATIO
56C QUILL INPUT
0.6250IN RH OUTPUT
B021115.WAQUA Cone Drive Right Angle Worm Gearbox, 1.33in Center Distance, 15:1 Ratio, NEMA 56C Motor Adapter Input, 0.625in Right Hand Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 117, Maximum Input Horsepower: 0.79, Maximum Output Torque: 325 lb-in, Efficiency: 76%
$578.18 EACHNewitem b021120.waau1
RIGHT ANGLE WORM GEARBOX
1.33IN CENTER DISTANCE
20:1 RATIO
56C QUILL INPUT
1.0000IN HOLLOW OUTPUT
B021120.WAAU1 Cone Drive Right Angle Worm Gearbox, 1.33in Center Distance, 20:1 Ratio, NEMA 56C Motor Adapter Input, 1.00in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 88, Maximum Input Horsepower: 0.62, Maximum Output Torque: 319 lb-in, Efficiency: 71%
$665.37 EACHNewitem b021120.waqua
RIGHT ANGLE WORM GEARBOX
1.33IN CENTER DISTANCE
20:1 RATIO
56C QUILL INPUT
0.6250IN RH OUTPUT
B021120.WAQUA Cone Drive Right Angle Worm Gearbox, 1.33in Center Distance, 20:1 Ratio, NEMA 56C Motor Adapter Input, 0.625in Right Hand Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 88, Maximum Input Horsepower: 0.62, Maximum Output Torque: 319 lb-in, Efficiency: 71%
$578.18 EACHNewitem b02115.0waau1
RIGHT ANGLE WORM GEARBOX
1.33IN CENTER DISTANCE
5:1 RATIO
56C QUILL INPUT
1.0000IN HOLLOW OUTPUT
B02115.0WAAU1 Cone Drive Right Angle Worm Gearbox, 1.33in Center Distance, 5:1 Ratio, NEMA 56C Motor Adapter Input, 1.00in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 350, Maximum Input Horsepower: 1.76, Maximum Output Torque: 275 lb-in, Efficiency: 87%
$684.14 EACHNewitem b02115.0waru1
RIGHT ANGLE WORM GEARBOX
1.33IN CENTER DISTANCE
5:1 RATIO
56C QUILL INPUT
0.6250IN DOUBLE OUTPUT
B02115.0WARU1 Cone Drive Right Angle Worm Gearbox, 1.33in Center Distance, 5:1 Ratio, NEMA 56C Motor Adapter Input, 0.625in Double Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 350, Maximum Input Horsepower: 1.76, Maximum Output Torque: 275 lb-in, Efficiency: 87%
$600.42 EACHitem b031110.waat1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
10:1 RATIO
56C QUILL INPUT
1.0000IN HOLLOW OUTPUT
B031110.WAAT1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 10:1 Ratio, NEMA 56C Motor Adapter Input, 1.00in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 175, Maximum Input Horsepower: 1.47, Maximum Output Torque: 446 lb-in, Efficiency: 84%
$721.13 EACHitem b031110.waft1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
10:1 RATIO
56C QUILL INPUT
0.8750IN HOLLOW OUTPUT
B031110.WAFT1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 10:1 Ratio, NEMA 56C Motor Adapter Input, 0.875in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 175, Maximum Input Horsepower: 1.47, Maximum Output Torque: 446 lb-in, Efficiency: 84%
$660.79 EACHitem b031110.wanta
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
10:1 RATIO
56C QUILL INPUT
0.7500IN RH OUTPUT
B031110.WANTA Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 10:1 Ratio, NEMA 56C Motor Adapter Input, 0.75in Right Hand Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 175, Maximum Input Horsepower: 1.47, Maximum Output Torque: 446 lb-in, Efficiency: 84%
$660.79 EACHitem b031110.wantb
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
10:1 RATIO
56C QUILL INPUT
0.7500IN LH OUTPUT
B031110.WANTB Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 10:1 Ratio, NEMA 56C Motor Adapter Input, 0.75in Left Hand Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 175, Maximum Input Horsepower: 1.47, Maximum Output Torque: 446 lb-in, Efficiency: 84%
$671.50 EACHitem b031110.wapt1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
10:1 RATIO
56C QUILL INPUT
0.7500IN DOUBLE OUTPUT
B031110.WAPT1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 10:1 Ratio, NEMA 56C Motor Adapter Input, 0.75in Double Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 175, Maximum Input Horsepower: 1.47, Maximum Output Torque: 446 lb-in, Efficiency: 84%
$506.53 EACHitem b031110.wra-1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
10:1 RATIO
0.7500IN SHAFT INPUT
1.0000IN HOLLOW OUTPUT
B031110.WRA-1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 10:1 Ratio, 0.75in Solid Input Shaft, 1.00in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 175, Maximum Input Horsepower: 1.47, Maximum Output Torque: 446 lb-in, Efficiency: 84%
$627.25 EACHitem b031110.wrf-1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
10:1 RATIO
0.7500IN SHAFT INPUT
0.8750IN HOLLOW OUTPUT
B031110.WRF-1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 10:1 Ratio, 0.75in Solid Input Shaft, 0.875in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 175, Maximum Input Horsepower: 1.47, Maximum Output Torque: 446 lb-in, Efficiency: 84%
$566.90 EACHitem b031110.wrn-a
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
10:1 RATIO
0.7500IN SHAFT INPUT
0.7500IN LH OUTPUT
B031110.WRN-A Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 10:1 Ratio, 0.75in Solid Input Shaft, 0.75in Left Hand Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 175, Maximum Input Horsepower: 1.47, Maximum Output Torque: 446 lb-in, Efficiency: 84%
$577.61 EACHitem b031110.wrp-1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
10:1 RATIO
0.7500IN SHAFT INPUT
0.7500IN DOUBLE OUTPUT
B031110.WRP-1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 10:1 Ratio, 0.75in Solid Input Shaft, 0.75in Double Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 175, Maximum Input Horsepower: 1.47, Maximum Output Torque: 446 lb-in, Efficiency: 84%
$600.42 EACHitem b031115.waat1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
15:1 RATIO
56C QUILL INPUT
1.0000IN HOLLOW OUTPUT
B031115.WAAT1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 15:1 Ratio, NEMA 56C Motor Adapter Input, 1.00in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 117, Maximum Input Horsepower: 1.11, Maximum Output Torque: 479 lb-in, Efficiency: 80%
$721.13 EACHitem b031115.waft1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
15:1 RATIO
56C QUILL INPUT
0.8750IN HOLLOW OUTPUT
B031115.WAFT1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 15:1 Ratio, NEMA 56C Motor Adapter Input, 0.875in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 117, Maximum Input Horsepower: 1.11, Maximum Output Torque: 479 lb-in, Efficiency: 80%

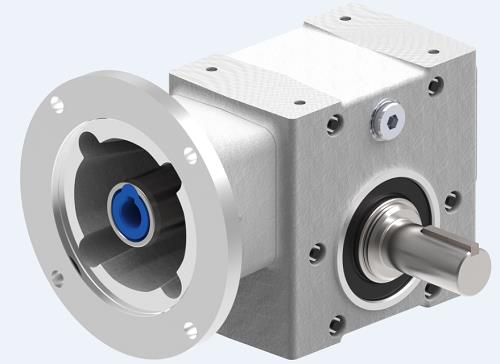

$660.79 EACHitem b031115.wanta
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
15:1 RATIO
56C QUILL INPUT
0.7500IN RH OUTPUT
B031115.WANTA Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 15:1 Ratio, NEMA 56C Motor Adapter Input, 0.75in Right Hand Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 117, Maximum Input Horsepower: 1.11, Maximum Output Torque: 479 lb-in, Efficiency: 80%
$660.79 EACHitem b031115.wantb
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
15:1 RATIO
56C QUILL INPUT
0.7500IN LH OUTPUT
B031115.WANTB Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 15:1 Ratio, NEMA 56C Motor Adapter Input, 0.75in Left Hand Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 117, Maximum Input Horsepower: 1.11, Maximum Output Torque: 479 lb-in, Efficiency: 80%

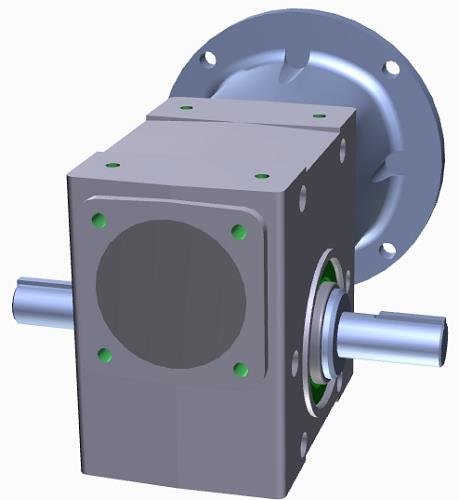

$671.50 EACHitem b031115.wapt1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
15:1 RATIO
56C QUILL INPUT
0.7500IN DOUBLE OUTPUT
B031115.WAPT1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 15:1 Ratio, NEMA 56C Motor Adapter Input, 0.75in Double Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 117, Maximum Input Horsepower: 1.11, Maximum Output Torque: 479 lb-in, Efficiency: 80%
$506.53 EACHitem b031115.wra-1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
15:1 RATIO
0.7500IN SHAFT INPUT
1.0000IN HOLLOW OUTPUT
B031115.WRA-1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 15:1 Ratio, 0.75in Solid Input Shaft, 1.00in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 117, Maximum Input Horsepower: 1.11, Maximum Output Torque: 479 lb-in, Efficiency: 80%
$627.25 EACHitem b031115.wrf-1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
15:1 RATIO
0.7500IN SHAFT INPUT
0.8750IN HOLLOW OUTPUT
B031115.WRF-1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 15:1 Ratio, 0.75in Solid Input Shaft, 0.875in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 117, Maximum Input Horsepower: 1.11, Maximum Output Torque: 479 lb-in, Efficiency: 80%

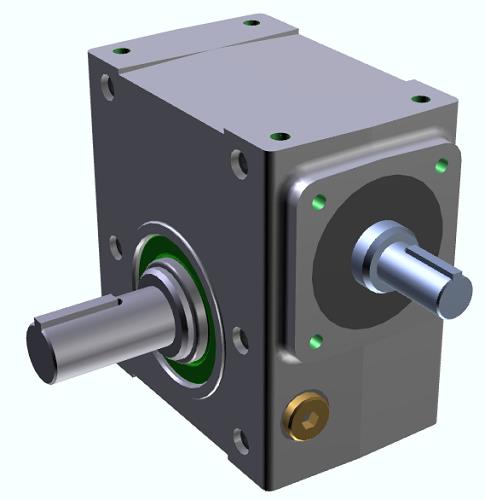

$566.90 EACHitem b031115.wrn-a
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
15:1 RATIO
0.7500IN SHAFT INPUT
0.7500IN LH OUTPUT
B031115.WRN-A Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 15:1 Ratio, 0.75in Solid Input Shaft, 0.75in Left Hand Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 117, Maximum Input Horsepower: 1.11, Maximum Output Torque: 479 lb-in, Efficiency: 80%

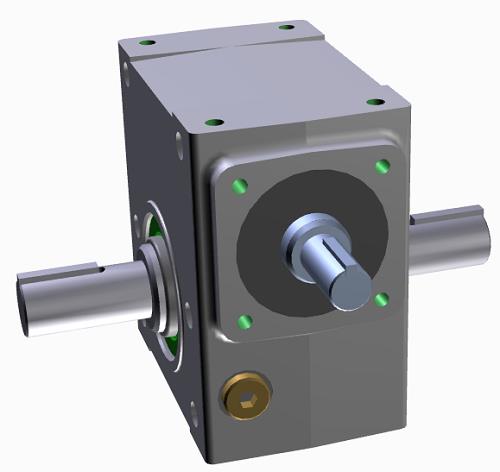

$577.61 EACHitem b031115.wrp-1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
15:1 RATIO
0.7500IN SHAFT INPUT
0.7500IN DOUBLE OUTPUT
B031115.WRP-1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 15:1 Ratio, 0.75in Solid Input Shaft, 0.75in Double Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 117, Maximum Input Horsepower: 1.11, Maximum Output Torque: 479 lb-in, Efficiency: 80%

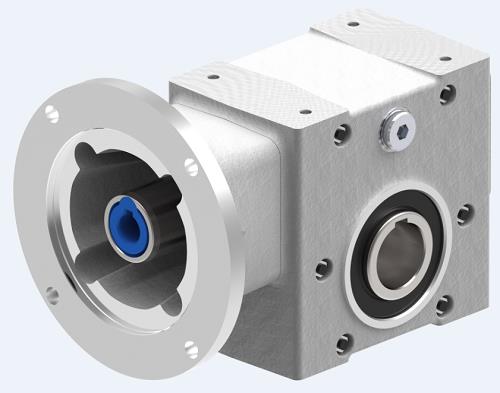

$600.42 EACHitem b031120.waat1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
20:1 RATIO
56C QUILL INPUT
1.0000IN HOLLOW OUTPUT
B031120.WAAT1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 20:1 Ratio, NEMA 56C Motor Adapter Input, 1.00in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 88, Maximum Input Horsepower: 0.88, Maximum Output Torque: 476 lb-in, Efficiency: 75%
$721.13 EACHitem b031120.waft1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
20:1 RATIO
56C QUILL INPUT
0.8750IN HOLLOW OUTPUT
B031120.WAFT1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 20:1 Ratio, NEMA 56C Motor Adapter Input, 0.875in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 88, Maximum Input Horsepower: 0.88, Maximum Output Torque: 476 lb-in, Efficiency: 75%
$660.79 EACHitem b031120.wanta
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
20:1 RATIO
56C QUILL INPUT
0.7500IN RH OUTPUT
B031120.WANTA Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 20:1 Ratio, NEMA 56C Motor Adapter Input, 0.75in Right Hand Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 88, Maximum Input Horsepower: 0.88, Maximum Output Torque: 476 lb-in, Efficiency: 75%

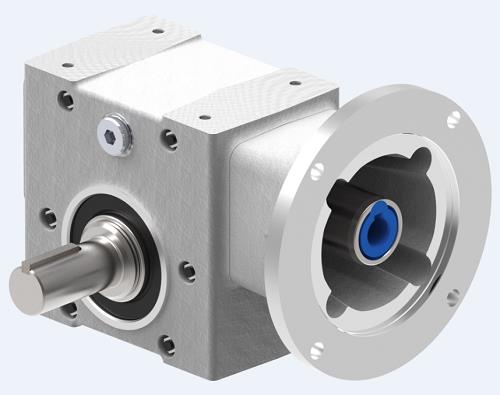

$660.79 EACHitem b031120.wantb
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
20:1 RATIO
56C QUILL INPUT
0.7500IN LH OUTPUT
B031120.WANTB Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 20:1 Ratio, NEMA 56C Motor Adapter Input, 0.75in Left Hand Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 88, Maximum Input Horsepower: 0.88, Maximum Output Torque: 476 lb-in, Efficiency: 75%
$671.50 EACHitem b031120.wapt1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
20:1 RATIO
56C QUILL INPUT
0.7500IN DOUBLE OUTPUT
B031120.WAPT1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 20:1 Ratio, NEMA 56C Motor Adapter Input, 0.75in Double Extended Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 88, Maximum Input Horsepower: 0.88, Maximum Output Torque: 476 lb-in, Efficiency: 75%
$506.53 EACHitem b031120.wra-1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
20:1 RATIO
0.7500IN SHAFT INPUT
1.0000IN HOLLOW OUTPUT
B031120.WRA-1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 20:1 Ratio, 0.75in Solid Input Shaft, 1.00in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 88, Maximum Input Horsepower: 0.88, Maximum Output Torque: 476 lb-in, Efficiency: 75%

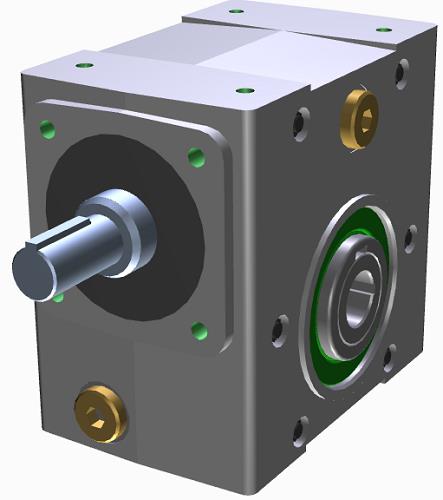

$627.25 EACHitem b031120.wrf-1
RIGHT ANGLE WORM GEARBOX
1.54IN CENTER DISTANCE
20:1 RATIO
0.7500IN SHAFT INPUT
0.8750IN HOLLOW OUTPUT
B031120.WRF-1 Cone Drive Right Angle Worm Gearbox, 1.54in Center Distance, 20:1 Ratio, 0.75in Solid Input Shaft, 0.875in Hollow Output Shaft ; Ratings Based On 1750 RPM Motor: Output Speed (RPM): 88, Maximum Input Horsepower: 0.88, Maximum Output Torque: 476 lb-in, Efficiency: 75%
