item gr-txmq-2.000-140tc-140tc

PARALLEL SHAFT HELICAL GEARBOX

2:1 RATIO

140TC QUILL INPUT

140TC 0.8750IN OUTPUT

Grove Gear® 708204L RM Series Single Reducer Helical Ratio Multiplier, C-Face Quill Input, Solid Shaft Output, 6 hp Input, 5.88 hp Output, 2 Gear, 875 rpm Maximum Output, 424 in-lb Output Torque Rating

item gr-txmq-2.913-140tc-140tc

PARALLEL SHAFT HELICAL GEARBOX

3:1 RATIO

140TC QUILL INPUT

140TC 0.8750IN OUTPUT

Grove Gear® 708215L RM Series Single Reducer Helical Ratio Multiplier, C-Face Quill Input, Solid Shaft Output, 4.21 hp Input, 4.13 hp Output, 2.913 Gear, 601 rpm Maximum Output, 433 in-lb Output Torque Rating

item grv dfhmq520-301-hl2-56-16

RIGHT ANGLE WORM GEARBOX

1.97IN CENTER DISTANCE

300:1 RATIO

56C QUILL INPUT

1.0000IN HOLLOW OUTPUT

Grove Gear® W5205033.00 Bravo™ 520 Compact Double Reduction Right Angle Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 0.165 hp Output, 301:1 Gear, 5.83 rpm Maximum Output, 799 in-lb Output Torque Rating

item grv el-bm832-60-r-56

RIGHT ANGLE WORM GEARBOX

3.25IN CENTER DISTANCE

60:1 RATIO

56C QUILL INPUT

1.6250IN RH OUTPUT

Grove Gear® ELECTRA GEAR® EL8320040.00 Right Angle Single Reduction Worm Gear Reducer, C-Face Coupling Input, Shaft Output, 2.114 hp Input, 1.515 hp Output, 60:1 Gear, 29 rpm Maximum Output, 3274 in-lb Output Torque Rating

item grv el-hm818-50-h1-56-16

RIGHT ANGLE WORM GEARBOX

1.75IN CENTER DISTANCE

50:1 RATIO

56C QUILL INPUT

1.0000IN HOLLOW OUTPUT

Grove Gear® ELECTRA GEAR® EL8180521.16 Right Angle Single Reduction Worm Gear Reducer, C-Face Coupling Input, Hollow Bore Output, 0.515 hp Input, 0.352 hp Output, 50:1 Gear, 35 rpm Maximum Output, 634 in-lb Output Torque Rating

item grv g185002.00

GEARBOX ACCESSORY

KIT - 813 SERIES STYLE VL/VH

Grove Gear® G185002.00 Style VL/VH Vertical Output Base Kit, For Use With IRONMAN® GR Series GR813 Size 1.33 in Center Distance Right Angle Worm Gear Reducer, Steel

item grv g185005.00

GEARBOX ACCESSORY

KIT - 818 SERIES STYLE T/U

Grove Gear® G185005.00 Style T/U Horizontal Base Kit, For Use With IRONMAN® GR Series GR818 Size 1-3/4 in Center Distance Right Angle Worm Gear Reducer, Cast Iron

item grv g185015.00

GEARBOX ACCESSORY

KIT - 824 SERIES STYLE T/U

Grove Gear® G185015.00 Style T/U Horizontal Base Kit, For Use With IRONMAN® GR Series GR824 Size 2.38 in Center Distance Right Angle Worm Gear Reducer, Cast Iron

item grv g185022.00

GEARBOX ACCESSORY

KIT - 826 SERIES STYLE VL/VH

Grove Gear® G185022.00 Style VL/VH Vertical Output Base Kit, For Use With IRONMAN® GR Series GR826 Size 2.63 in Center Distance Right Angle Worm Gear Reducer, Steel

item grv g185035.00

GEARBOX ACCESSORY

KIT - 852 SERIES STYLE T/U

Grove Gear® G185035.00 Style T/U Horizontal Base Kit, For Use With IRONMAN® GR Series GR852 Size 5-1/4 in Center Distance Right Angle Worm Gear Reducer, Cast Iron

item grv g185134.00

GEARBOX ACCESSORY

Kit - 824 Series Style F

Grove Gear® G185134.00 Style F Output Flange Kit, For Use With IRONMAN® GR Series GR824 Size 2.38 in Center Distance Right Angle Worm Gear Reducer, Cast Iron

item grv g185135.00

GEARBOX ACCESSORY

KIT - 826 SERIES STYLE F

Grove Gear® G185135.00 Style F Output Flange Kit, For Use With IRONMAN® GR Series GR826 Size 2.63 in Center Distance Right Angle Worm Gear Reducer, Cast Iron

item grv g185137.00

GEARBOX ACCESSORY

Kit - 832 Series Style F

Grove Gear® G185137.00 Style F Output Flange Kit, For Use With IRONMAN® GR Series GR832 Size 3-1/4 in Center Distance Right Angle Worm Gear Reducer, Cast Iron

item grv g185146.00

GEARBOX ACCESSORY

KIT - 830 SERIES STYLE R

Grove Gear® G185146.00 Style R Riser Block Kit, For Use With IRONMAN® GR Series GR830 Size 3 in Center Distance Right Angle Worm Gear Reducer, Cast Iron

item grv gr-b815-20-d

RIGHT ANGLE WORM GEARBOX

1.54IN CENTER DISTANCE

20:1 RATIO

0.6250IN SHAFT INPUT

0.7500IN DOUBLE OUTPUT

Grove Gear® IRONMAN® GR8150029.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 0.919 hp Input, 0.719 hp Output, 20:1 Gear, 87 rpm Maximum Output, 518 in-lb Output Torque Rating

item grv gr-b815-20-r

RIGHT ANGLE WORM GEARBOX

1.54IN CENTER DISTANCE

20:1 RATIO

0.6250IN SHAFT INPUT

0.7500IN RH OUTPUT

Grove Gear® IRONMAN® GR8150017.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 0.919 hp Input, 0.719 hp Output, 20:1 Gear, 87 rpm Maximum Output, 518 in-lb Output Torque Rating

item grv gr-b818-10-l

RIGHT ANGLE WORM GEARBOX

1.75IN CENTER DISTANCE

10:1 RATIO

0.6250IN SHAFT INPUT

0.8750IN LH OUTPUT

Grove Gear® IRONMAN® GR8180003.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 1.625 hp Input, 1.466 hp Output, 10:1 Gear, 175 rpm Maximum Output, 528 in-lb Output Torque Rating

item grv gr-b818-15-l

RIGHT ANGLE WORM GEARBOX

1.75IN CENTER DISTANCE

15:1 RATIO

0.6250IN SHAFT INPUT

0.8750IN LH OUTPUT

Grove Gear® IRONMAN® GR8180004.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 1.224 hp Input, 1.058 hp Output, 15:1 Gear, 116 rpm Maximum Output, 571 in-lb Output Torque Rating

item grv gr-b818-20-d

RIGHT ANGLE WORM GEARBOX

1.75IN CENTER DISTANCE

20:1 RATIO

0.6250IN SHAFT INPUT

0.8750IN DOUBLE OUTPUT

Grove Gear® IRONMAN® GR8180029.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 1.046 hp Input, 0.875 hp Output, 20:1 Gear, 87 rpm Maximum Output, 630 in-lb Output Torque Rating

item grv gr-b818-20-l

RIGHT ANGLE WORM GEARBOX

1.75IN CENTER DISTANCE

20:1 RATIO

0.6250IN SHAFT INPUT

0.8750IN LH OUTPUT

Grove Gear® IRONMAN® GR8180005.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 1.046 hp Input, 0.875 hp Output, 20:1 Gear, 87 rpm Maximum Output, 630 in-lb Output Torque Rating

item grv gr-b818-20-r

RIGHT ANGLE WORM GEARBOX

1.75IN CENTER DISTANCE

20:1 RATIO

0.6250IN SHAFT INPUT

0.8750IN RH OUTPUT

Grove Gear® IRONMAN® GR8180017.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 1.046 hp Input, 0.875 hp Output, 20:1 Gear, 87 rpm Maximum Output, 630 in-lb Output Torque Rating

item grv gr-b824-10-l

RIGHT ANGLE WORM GEARBOX

2.38IN CENTER DISTANCE

10:1 RATIO

0.7500IN SHAFT INPUT

1.1250IN LH OUTPUT

Grove Gear® IRONMAN® GR8240003.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 3.564 hp Input, 3.253 hp Output, 10:1 Gear, 175 rpm Maximum Output, 1172 in-lb Output Torque Rating

item grv gr-b824-10-r

RIGHT ANGLE WORM GEARBOX

2.38IN CENTER DISTANCE

10:1 RATIO

0.7500IN SHAFT INPUT

1.1250IN RH OUTPUT

Grove Gear® IRONMAN® GR8240015.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 3.564 hp Input, 3.253 hp Output, 10:1 Gear, 175 rpm Maximum Output, 1172 in-lb Output Torque Rating

item grv gr-b824-15-l

RIGHT ANGLE WORM GEARBOX

2.38IN CENTER DISTANCE

15:1 RATIO

0.7500IN SHAFT INPUT

1.1250IN LH OUTPUT

Grove Gear® IRONMAN® GR8240004.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 2.765 hp Input, 2.439 hp Output, 15:1 Gear, 116 rpm Maximum Output, 1318 in-lb Output Torque Rating

item grv gr-b824-20-r

RIGHT ANGLE WORM GEARBOX

2.38IN CENTER DISTANCE

20:1 RATIO

0.7500IN SHAFT INPUT

1.1250IN RH OUTPUT

Grove Gear® IRONMAN® GR8240017.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 2.326 hp Input, 1.972 hp Output, 20:1 Gear, 87 rpm Maximum Output, 1421 in-lb Output Torque Rating

item grv gr-b824-25-l

RIGHT ANGLE WORM GEARBOX

2.38IN CENTER DISTANCE

25:1 RATIO

0.7500IN SHAFT INPUT

1.1250IN LH OUTPUT

Grove Gear® IRONMAN® GR8240006.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 1.967 hp Input, 1.615 hp Output, 25:1 Gear, 70 rpm Maximum Output, 1454 in-lb Output Torque Rating

item grv gr-b824-30-r

RIGHT ANGLE WORM GEARBOX

2.38IN CENTER DISTANCE

30:1 RATIO

0.7500IN SHAFT INPUT

1.1250IN RH OUTPUT

Grove Gear® IRONMAN® GR8240019.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 1.653 hp Input, 1.317 hp Output, 30:1 Gear, 58 rpm Maximum Output, 1423 in-lb Output Torque Rating

item grv gr-b824-60-l

RIGHT ANGLE WORM GEARBOX

2.38IN CENTER DISTANCE

60:1 RATIO

0.7500IN SHAFT INPUT

1.1250IN LH OUTPUT

Grove Gear® IRONMAN® GR8240010.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 0.967 hp Input, 0.656 hp Output, 60:1 Gear, 29 rpm Maximum Output, 1418 in-lb Output Torque Rating

item grv gr-b830-20-r

RIGHT ANGLE WORM GEARBOX

3.00IN CENTER DISTANCE

20:1 RATIO

0.8750IN SHAFT INPUT

1.2500IN RH OUTPUT

Grove Gear® IRONMAN® GR8300017.00 Right Angle Single Reduction Worm Gear Reducer, Shaft Input, Shaft Output, 3.947 hp Input, 3.407 hp Output, 20:1 Gear, 87 rpm Maximum Output, 2454 in-lb Output Torque Rating

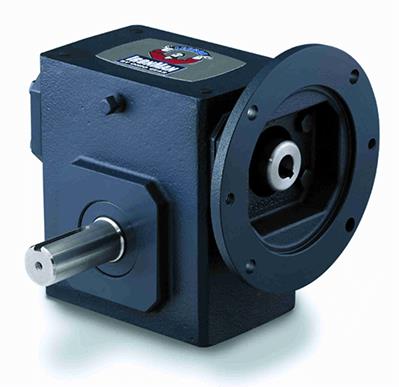

item grv gr-bm818-10-l-56

RIGHT ANGLE WORM GEARBOX

1.75IN CENTER DISTANCE

10:1 RATIO

56C QUILL INPUT

0.8750IN LH OUTPUT

Grove Gear® IRONMAN® GR8180039.00 Right Angle Single Reduction Worm Gear Reducer, C-Face Coupling Input, Shaft Output, 1.625 hp Input, 1.466 hp Output, 10:1 Gear, 175 rpm Maximum Output, 528 in-lb Output Torque Rating
